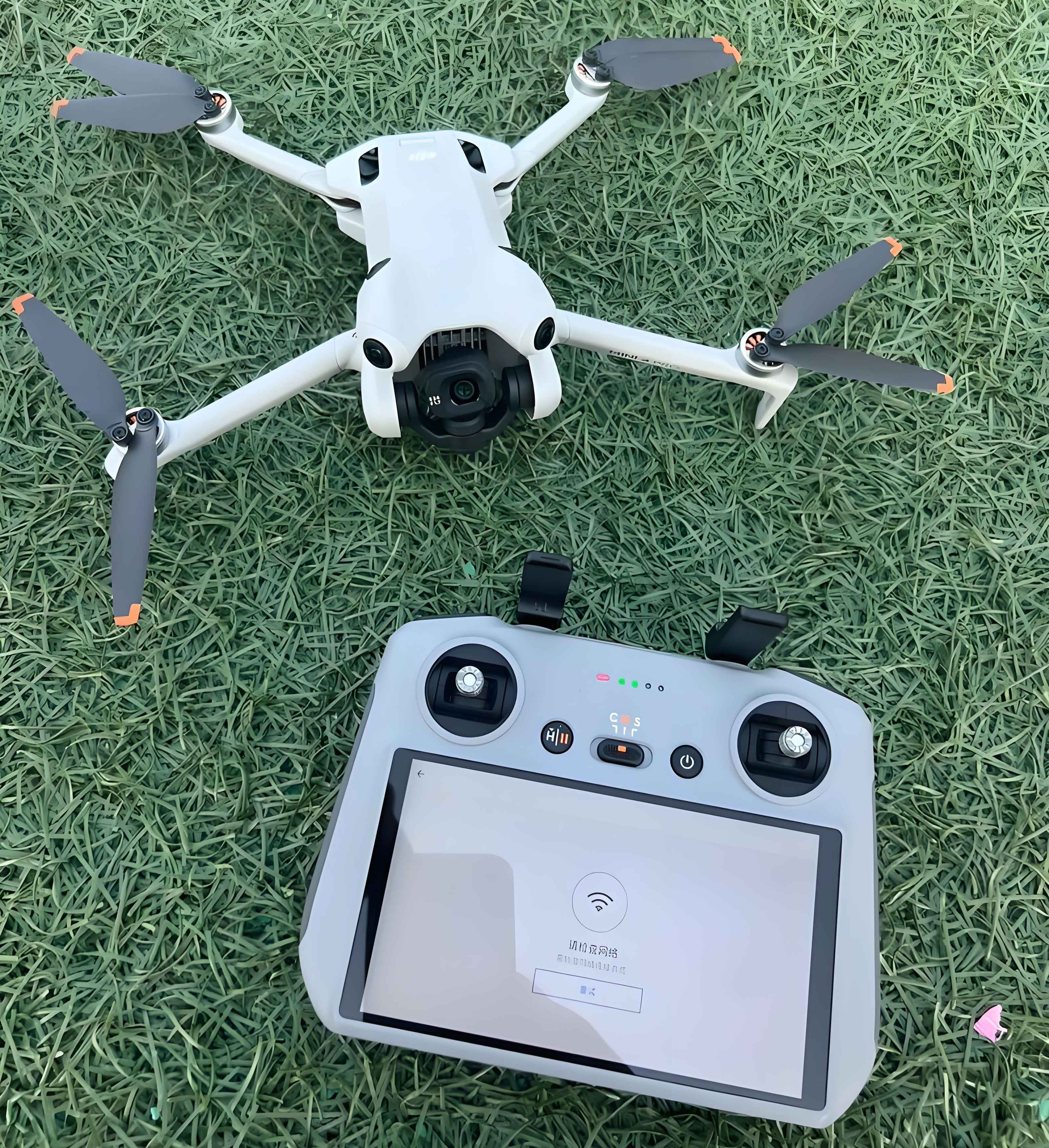

During a major international cycling event, our radio management team encountered a critical interference case affecting live broadcast operations. The CCTV camera drone experienced severe video transmission lag and freezing during aerial footage capture. Our investigation revealed a secondary media camera UAV operating nearby, causing signal degradation in the 2.4GHz spectrum. This incident prompted deeper analysis of camera drone technology and regulatory frameworks.
The proliferation of camera UAV technology has expanded across diverse sectors including agricultural monitoring, disaster response, news reporting, and cinematography. Current usage statistics reveal significant regulatory gaps:
| Metric | Value | Implication |
|---|---|---|
| Quarterly Sales Volume (2015) | 40,000 units | Rapid market expansion |
| Certified Operators (2015) | 1,250 persons | Significant regulatory gap |
| Market Leader Share | 68.5% | Technology standardization |
The technical architecture of modern camera drones comprises three critical systems governed by radio frequency physics:
1. Flight control system: $$ S_{control} = P_tG_tG_r \left( \frac{\lambda}{4\pi d} \right)^2 $$
2. Gimbal/camera stabilization
3. Image transmission: $$ C = B \log_2 \left(1 + \frac{S}{N + I}\right) $$
Where \( S \) = signal power, \( N \) = noise floor, \( I \) = interference power, \( B \) = channel bandwidth, \( d \) = transmission distance.
Measurement data from a representative camera UAV system revealed critical parameters:
| Subsystem | Parameter | Value |
|---|---|---|
| Camera Drone | Operating Frequency | 2.400-2.483 GHz |
| Max EIRP (FCC) | 23 dBm | |
| Power Density | 6.9 mW/MHz | |
| Transmission | Video Latency | 220 ms |
| Bandwidth Occupancy | 10 MHz |
Frequency allocation conflicts emerge when examining regulatory frameworks. The spectral signature of multiple camera UAVs operating simultaneously creates interference potential:
$$ I_{total} = \sum_{i=1}^{n} P_iG_i(\theta) \left( \frac{\lambda}{4\pi d_i} \right)^2 $$
Where \( n \) = number of interfering sources, \( \theta \) = antenna radiation angle.
Common interference sources to camera drone operations include:
| Interfering System | Bandwidth | Typical Range |
|---|---|---|
| WiFi Networks | 22 MHz | < 100 m |
| Bluetooth Devices | 1 MHz | < 10 m |
| Wireless USB | 1 MHz | < 10 m |
| ZigBee Systems | 3 MHz | < 50 m |
Regulatory analysis reveals critical compliance gaps in camera UAV operations. The probability of interference occurrence follows:
$$ P_{int} = 1 – e^{-\lambda A T} $$
Where \( \lambda \) = camera drone density, \( A \) = coverage area, \( T \) = transmission time.
To mitigate camera UAV interference during major events, we recommend:
- Pre-event spectrum surveys: $$ \int_{f_1}^{f_2} S(f) df \leq \Gamma $$
- Channel allocation protocols
- Power density limitations
- Dynamic frequency selection
The technical evolution of camera drones presents both opportunities and regulatory challenges. Future frameworks must balance innovation with spectrum management principles, particularly as camera UAV density increases according to:
$$ \frac{dN}{dt} = rN \left(1 – \frac{N}{K}\right) – \mu N^2 $$
Where \( N \) = number of camera drones, \( r \) = growth rate, \( K \) = carrying capacity, \( \mu \) = interference coefficient.
Effective camera UAV management requires collaborative approaches between manufacturers, operators, and regulatory bodies to ensure sustainable spectrum utilization while enabling technological advancement in aerial imaging systems.
