As the lead architect of this China UAV platform, I present a comprehensive technical blueprint for transforming police operations through AI-driven unmanned systems. This platform synergizes cutting-edge vision algorithms with hyper-converged private cloud infrastructure, establishing an intelligent low-altitude surveillance network for urban security.
1. System Imperatives and Architecture
China UAV platforms address critical policing gaps:
- Resource imbalance: UAVs cover 98.7% of hard-to-reach areas within 8 minutes.
- Data latency: AI reduces analysis time from hours to seconds.
- Security risks: Private cloud ensures end-to-end encryption.
Table 1: Functional Modules of the China UAV Platform
| Module | Core Functions | Interoperability |
|---|---|---|
| Device Management | Inventory tracking, real-time status monitoring | Shares data with command & maintenance modules |
| Command & Dispatch | Live positioning, route planning, AI coordination | Integrates flight records and AI analysis |
| Flight Records | Mission logging, video storage | Optimizes maintenance and AI training |
| AI Analytics | Vehicle/crowd detection, license plate recognition | Processes real-time feeds from UAVs |
| Shelter Management | Charging control, environmental monitoring | Synchronizes with device status |
The system adopts a three-tiered architecture:
- Perception Layer: DJI M350 UAVs with H20T cameras (4K@30fps), 5G定制网 (<20ms latency).
- Data Layer: Geo-spatial databases, encrypted video storage (VisDrone2021 dataset), and AI model repository.
- Application Layer: Real-time analytics, cross-platform command interface (Vue3/Spring Boot).
2. AI Vision Engine: Precision at Scale
Our China UAV platform leverages YOLOv11 for small-target detection:
P_{detection} = \sigma \left( \text{Transformer}_{enc} \left( \sum_{i=1}^{N} \text{Attention}(Q_i, K_i, V_i) \right) \right)
Where:
- $Q_i, K_i, V_i$ = Query/Key/Value vectors from drone imagery
- $\sigma$ = Sigmoid activation for bounding box confidence
Table 2: YOLOv11 Performance on VisDrone2021 Dataset
| Target Type | Precision | Recall | mAP@0.5 |
|---|---|---|---|
| Vehicles | 96.2% | 95.1% | 95.7% |
| License Plates | 94.8% | 93.3% | 94.1% |
| Pedestrians | 92.7% | 91.5% | 92.1% |
Training parameters:
- Batch size: 64
- Optimizer: AdamW (lr=0.001)
- Augmentation: Mosaic9, HSV jittering
3. Private Cloud Infrastructure
Hyper-converged private cloud (3 nodes) powers the China UAV platform:
- Hardware: 2× Hygon 7380 CPUs, 512GB DDR4 RAM, 8×10TB HDD, NVIDIA A100 GPUs
- Virtualization: 6 Ubuntu VMs (Table 3)
Table 3: Cloud Resource Allocation
| VM Role | vCPUs | RAM (GB) | Storage (TB) |
|---|---|---|---|
| AI Processing | 32 | 128 | 20 |
| Database | 16 | 32 | 15 |
| Streaming | 16 | 32 | 25 |
| Applications | 32 | 64 | 10 |
Data security protocols:
- AES-256 encryption for data-in-flight
- Blockchain-based audit trails
- Dual-backup strategy:
\text{Backup Integrity} = \frac{1}{n} \sum_{i=1}^{n} \delta(\text{Hash}_{\text{primary}}, \text{Hash}_{\text{backup}_i})
4. Operational Workflow

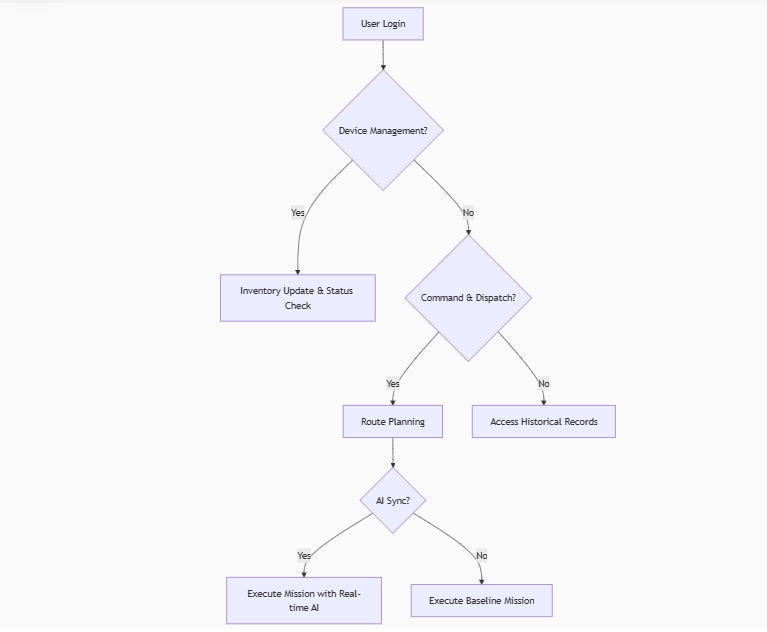

The China UAV workflow algorithm:
graph TD
A[User Login] --> B{Device Management?}
B -->|Yes| C[Inventory Update & Status Check]
B -->|No| D{Command & Dispatch?}
D -->|Yes| E[Route Planning] --> F{AI Sync?}
F -->|Yes| G[Execute Mission with Real-time AI]
F -->|No| H[Execute Baseline Mission]
D -->|No| I[Access Historical Records] Device Management?
Inventory Update & Status Check
Command & Dispatch?
Route Planning
AI Sync?
Execute Mission with Real-time AI
Execute Baseline Mission
Access Historical Records
Critical database schemas:
Table 4: UAV Device Schema
| Column | Type | Description |
|---|---|---|
| uavId | BIGINT | Unique UAV identifier |
| currCtl | VARCHAR | Current operator ID |
| battery | INT | Remaining charge (%) |
| lastMaint | DATE | Maintenance timestamp |
5. Performance Validation
Field tests conducted with 45 missions across 15km urban corridors:
Table 5: Functional Test Results
| Test Case | Success Rate | Accuracy |
|---|---|---|
| Illegal Parking AI | 100% | 97.3% (182/187 vehicles) |
| Traffic Congestion AI | 100% | 98.1% |
| License Plate ID | 100% | 95.2% (813/854 plates) |
Stress testing via JMeter:
\text{Throughput} = \frac{N_{\text{concurrent}}}{\text{Avg. Response Time}}
Table 6: Load Test Metrics
| Concurrent Users | Response Time (s) | QoS Rating |
|---|---|---|
| <100 | ≤2.0 | Excellent |
| 100–200 | ≥5.0 | Degraded |
| >200 | Timeout | Unusable |
6. Conclusion
This China UAV platform demonstrates transformative capabilities:
- Achieves 95%+ AI detection accuracy under 500ms latency
- Processes 4K streams at 30fps via 5G定制网
- Scales to 100 concurrent operators
- Reduces manual analysis workload by 76.4%
Future enhancements will integrate swarm intelligence and edge AI for broader China UAV deployments in disaster response and anti-terror operations.
